Solid State Relay
The Carlo Gavazzi Group

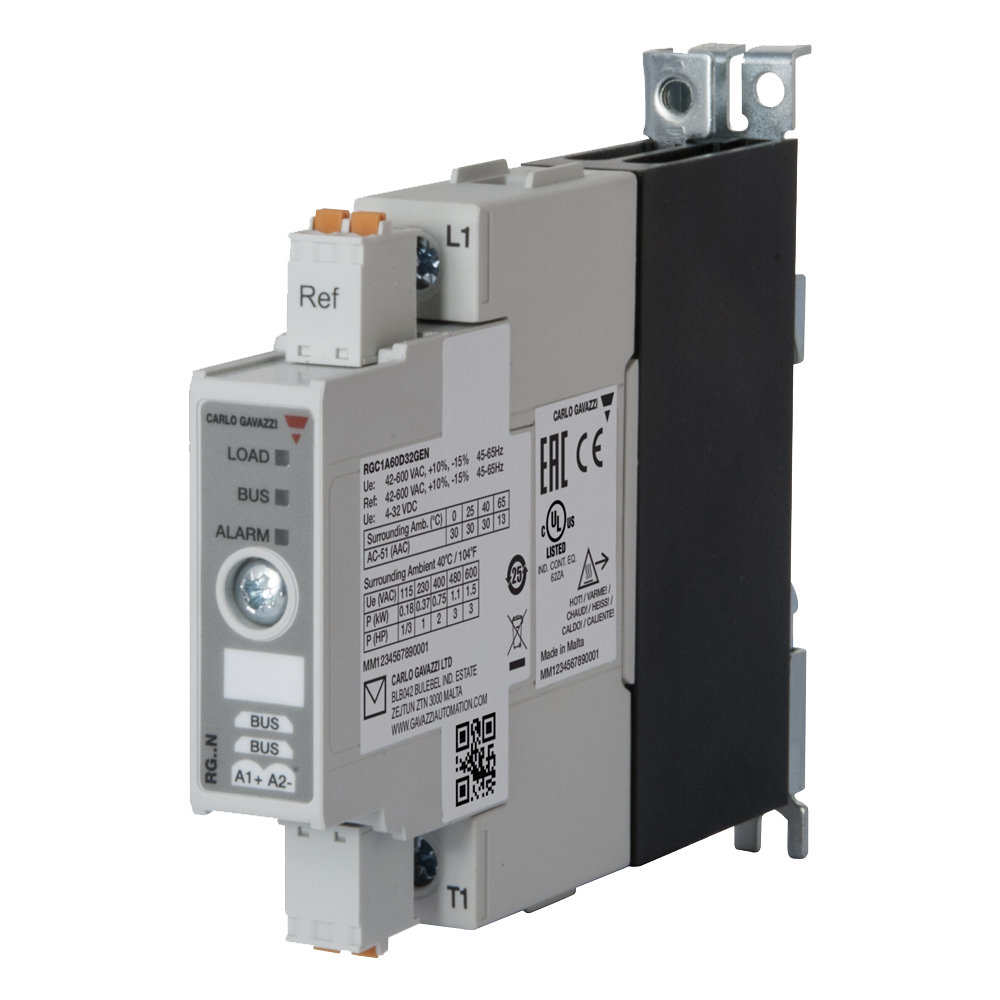

RGC1A60D32GEN
1-pole DIN-rail mount SSR, Zero-cross switching, bus interface (NRG) for Real-time data (A, V, W, Hz, kWh, Hrs) and monitoring, Operating voltage (Ue): 42 - 660 Vac (1200 Vp), Rated current (Ie): 37 Aac, Control: 4-32 Vdc, Built-in overvoltage protectionSpecifications
Output switching mode
Zero cross
Number of poles
1
Rated current AC-51
37 A
Operating voltage
42 V ... 660 V
Control voltage AC
0 V ... 0 V
Control voltage DC
4 V ... 32 V
Power connection
Box clamp
Downloads
Data sheet
Manuals
Images
Drawings
Brochures
Videos
Certifications
Related accessories
NRGC
Controller for the NRG bus chain, Modbus RTU interface, DIN-rail mount, External supply 24 Vdc, NRG bus termination resistor included
RCRGN-010-2
Bus cable for the internal bus of the RG..N (NRG solid state relay) series, length of 10 cm, terminated with a micro USB at both ends, Bulk buy x4
RCRGN-025-2
Bus cable for the internal bus of the RG..N (NRG solid state relay) series, length of 25 cm, terminated with a micro USB at both ends
RGN-TERMRES
NRG internal bus termination resistor to be fitted on the last RG..N of the NRG bus chain, Bulk buy x4
RGMREF
Terminal plug, spring, 2-pole, suitable for the Ref connection of the RG..N (NRG) series, rated cable capacity 0.2 - 2.5 mm2; / 24 - 12 AWG, Bulk buy x10
RGM25
RCRGN-075-2
Bus cable for the internal bus of the RG..N (NRG solid state relay) series, length of 75 cm, terminated with a micro USB at both ends
RCRGN-150-2
Bus cable for the internal bus of the RG..N (NRG solid state relay) series, length of 150 cm, terminated with a micro USB at both ends
RCRGN-350-2
Bus cable for the internal bus of the RG..N (NRG solid state relay) series, length of 350 cm, terminated with a micro USB at both ends
RCRGN-500-2
Bus cable for the internal bus of the RG..N (NRG solid state relay) series, length of 500 cm, terminated with a micro USB at both ends
