ICS08S30F15POM1

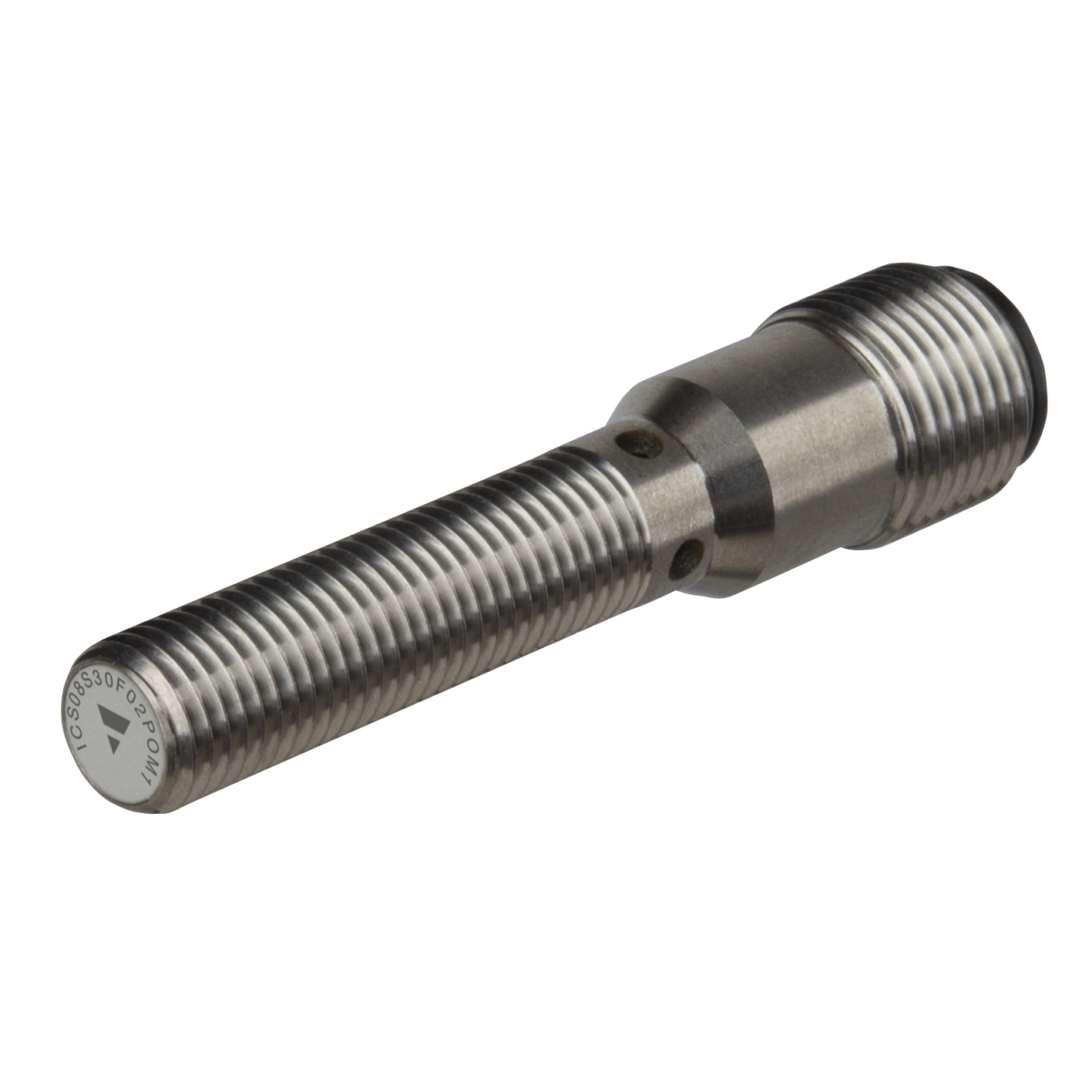

Inductive proximity sensor, M8 Stainless steel, M12 plug, Sn 1.5mm, Flush mount, Short body, PNP, NO, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 2 kHz, Operating temperature -25C - +80C, IP67Specifications
Rated operating distance
1.5 mm
Installation type
Flush
Diameter
M8
Output type
PNP
Output function
Normally Open (NO)
Connection type
Connector M12
Housing type
Cylindrical, threaded barrel
Housing material
Metal
Rated power supply
10 V ... 36 V
Downloads
Data sheet
Images
Drawings
Certifications
3D dynamic generator
Related accessories
AMB8-A
Mounting Bracket for M8 Sensors, size 30 x 30 x 26,5 mm, Steel galvanized
AMB8-S
Mounting Bracket, Streight, for M8 Sensors, size 30 x 53,5 mm, Steel galvanized
CON14NFA2
Connection cable, Angled M12 plug, Female, 4-wires, PVC 2m cable, IP67, Temperature -25 - +80C
CON14NFA5
Connection cable, Angled M12 plug, Female, 4-wires, PVC 5m cable, IP67, Temperature -25 - +80C
