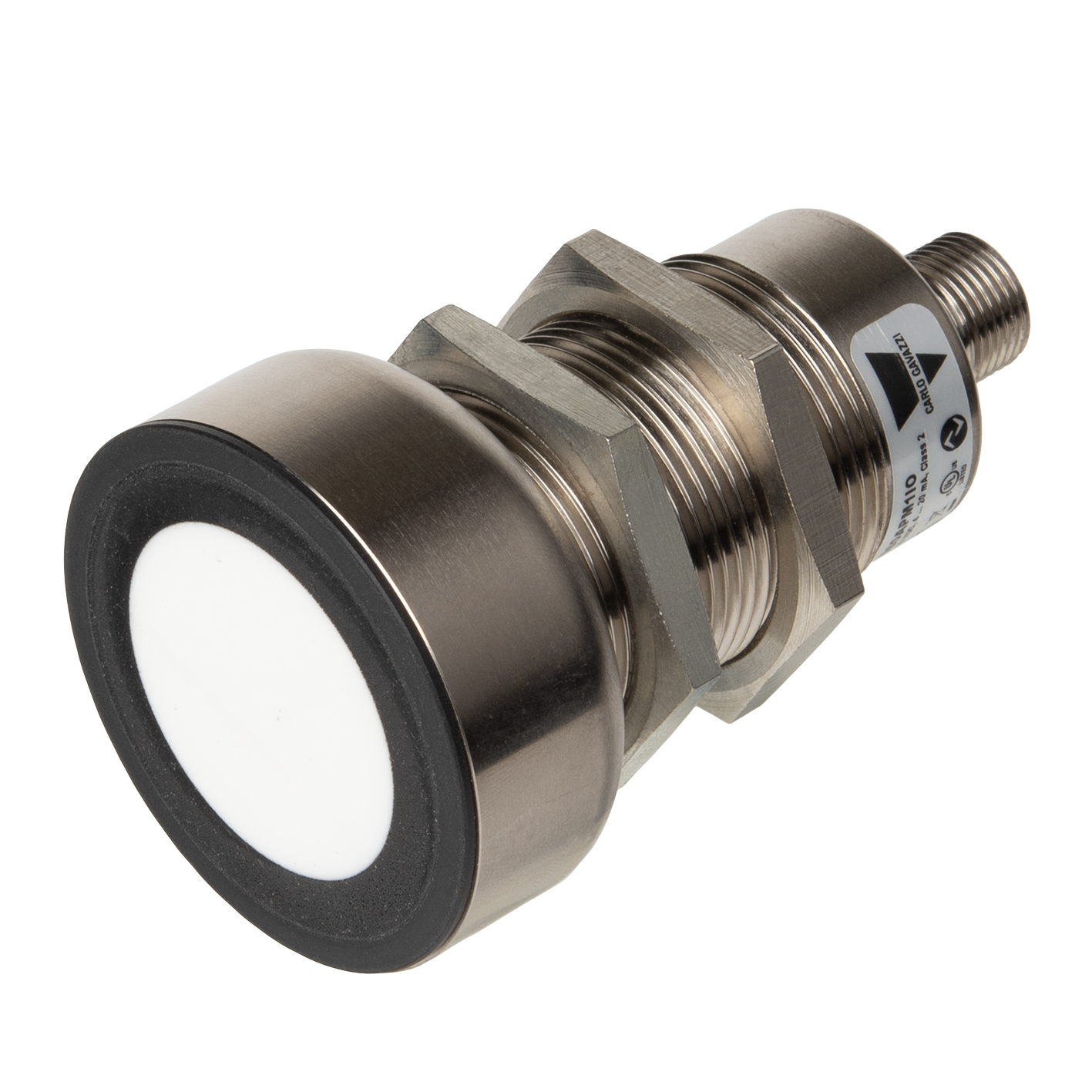

UA30ASD60APM1IO

Ultrasonic Sensor, Diffuse Reflective, M30 NPB housing, M12 Connector, Sn 600-6000mm, Analogue Output 0-10V, 4-20mA, 0-20mA, Push-Pull, NPN, PNP,Supply Voltage 18-30VDC, Operating Temperature -25-+70C, Switching Frequency 2Hz, IP67, Teach-by wire, IO-Link

Listpris

Tillgänglighet

Quantity

Har du frågor om den här produkten? Kontakta oss

Specifikationer

Rated operating distance

600 mm ... 6000 mm

Analogue output

0 V ... 10 V

Output type

PNP/NPN

Output function

Change-over contact (NO/NC)

Connection type

Connector M12

Housing material

Brass

Rated power supply

18 V ... 30 V

Degree of protection

IP67

Nedladdningar

Datablad

Manualer

Bilder

Ritningar

Konfigurationsprogramvara

Broschyrer

Videor

Certifieringar
