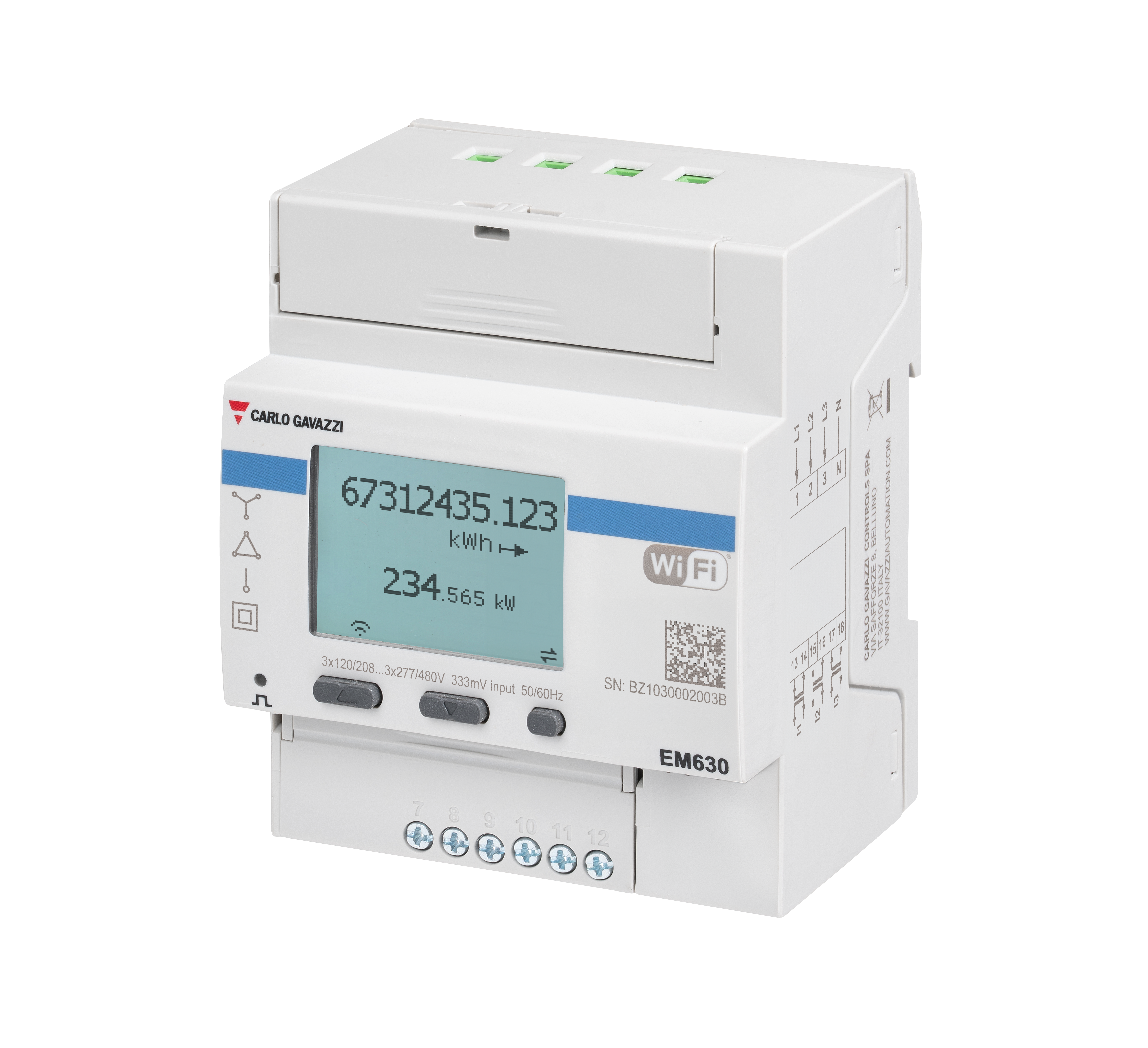

EM630WAV53XXXS1PFC
Three-phase MID Energy analyzer, 230 V L-N, 400 V L-L, 5(6) A CT connection, Wi-Fi LAN (Modbus TCP and HTTPS REST API), Wi-Fi 1-to-1 for configuration, RS485 Modbus RTUwebserver, bidirectional, CE, MIDSpecifications
Voltage inputs
3-phase (4-wire), 230/400 V; 3-phase (3-wire), 400 V L-L
Frequency
50Hz
Current inputs
5 A current transformers
Energy metering
Consumption and generation
Communication port and protocol
M-Bus; Ethernet (Modbus TCP/IP); Ethernet (HTTPS REST API); Ethernet (HTTPS webserver); Wi-Fi LAN (Modbus TCP/IP); Wi-Fi LAN (HTTPS REST API); Wi-Fi LAN (HTTPS webserver); Wi-Fi 1-to-1 (Soft AP)
Power supply
Self power supply
Approvals, marks, declarations
CE (Europe); MID (Europe, fiscal metering)
