Sensors
The Carlo Gavazzi Group

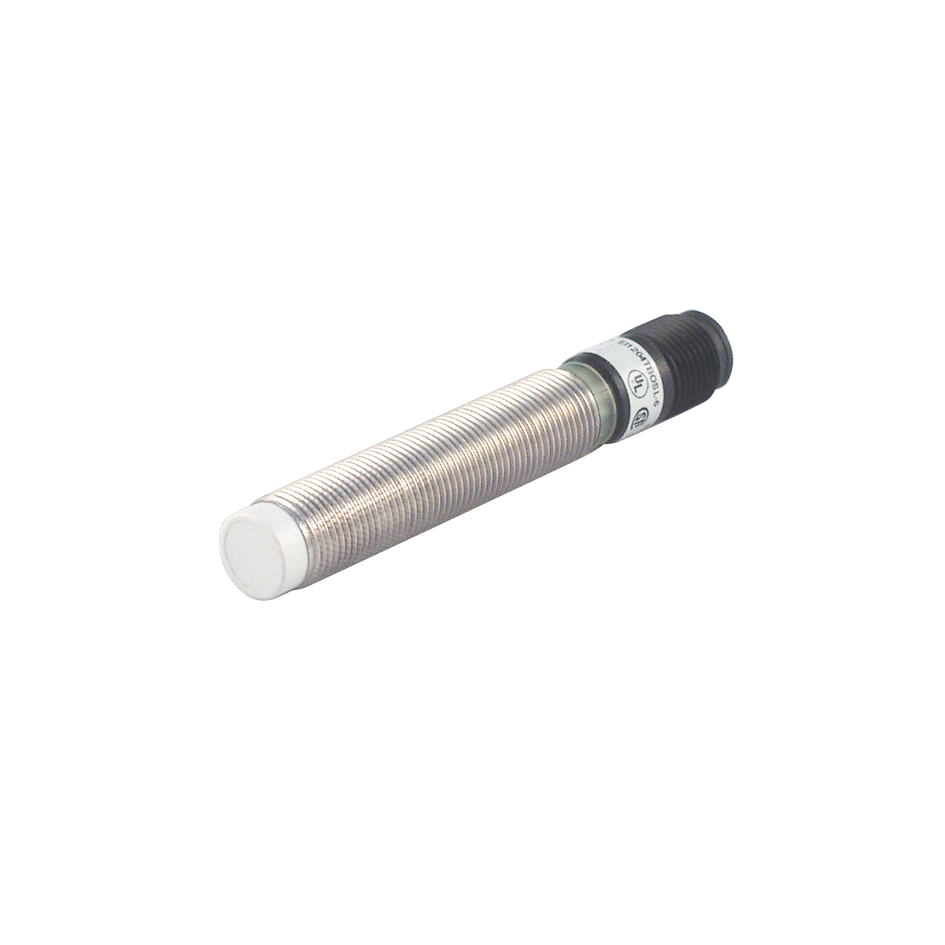

EI1204TBOSL-6
Inductive proximity sensor, M12 Stainless steel, M12 connector, Sn 4mm, Long body, SCR NO, Supply voltage 20-250 Vac, Max output current 500 mA, Max switching frequency 25Hz, Operating temperature -25C - +70C, IP67Spezifikationen
Switching distance
4 mm
Mechanical mounting condition for sensor
Concise
Diameter sensor
M12
Type of switching output
Other
Type of switch function
Normally open contact
Type of electric connection
Connector M12
Construction type housing
Cylinder, screw-thread
Material housing
Metal
Supply voltage
20 V ... 250 V
Downloads
Das Datenblatt
Bilder
Broschüren
Zertifizierungen
Verwandtes Zubehör
AMB12-A
Mounting Bracket, Angled, for M12 Sensors, size 30 x 30 x 26,5 mm, Steel galvanized
AMB12-A316L
Mounting Bracket, Angled, for M12 Sensors, size 30 x 30 x 26,5 mm, Stainless Steel AISI316L
AMB12-S
Mounting Bracket, Straight, for M12 Sensors, size 30 x 53,5 mm, Steel galvanized
AMB12-S316L
Mounting Bracket, Straight, for M12 Sensors, size 30 x 53,5 mm, Stainless Steel AISI316L
CONH6A-A2
Connection cable, M12 Angled plug, 3-wires, AC/DC, Double coated, Female, PVC 2m cable, IP67, Temperature -40 - +90C
CONH6A-A5
Connection cable, M12 Angled plug, 3-wires, AC/DC, Double coated, Female, PVC 5 m cable, IP67, Temperature -40 - +90C
CONH6A-S2
Connection cable, M12 straight plug, 3-wires, AC/DC, Double coated, Female, PVC 2m cable, IP67, Temperature -40 - +90C
CONH6A-S5
Connection cable, M12 straight plug, 3-wires, AC/DC, Double coated, Female, PVC 5 m cable, IP67, Temperature -40 - +90C
