Solid State Relay

Panel mount

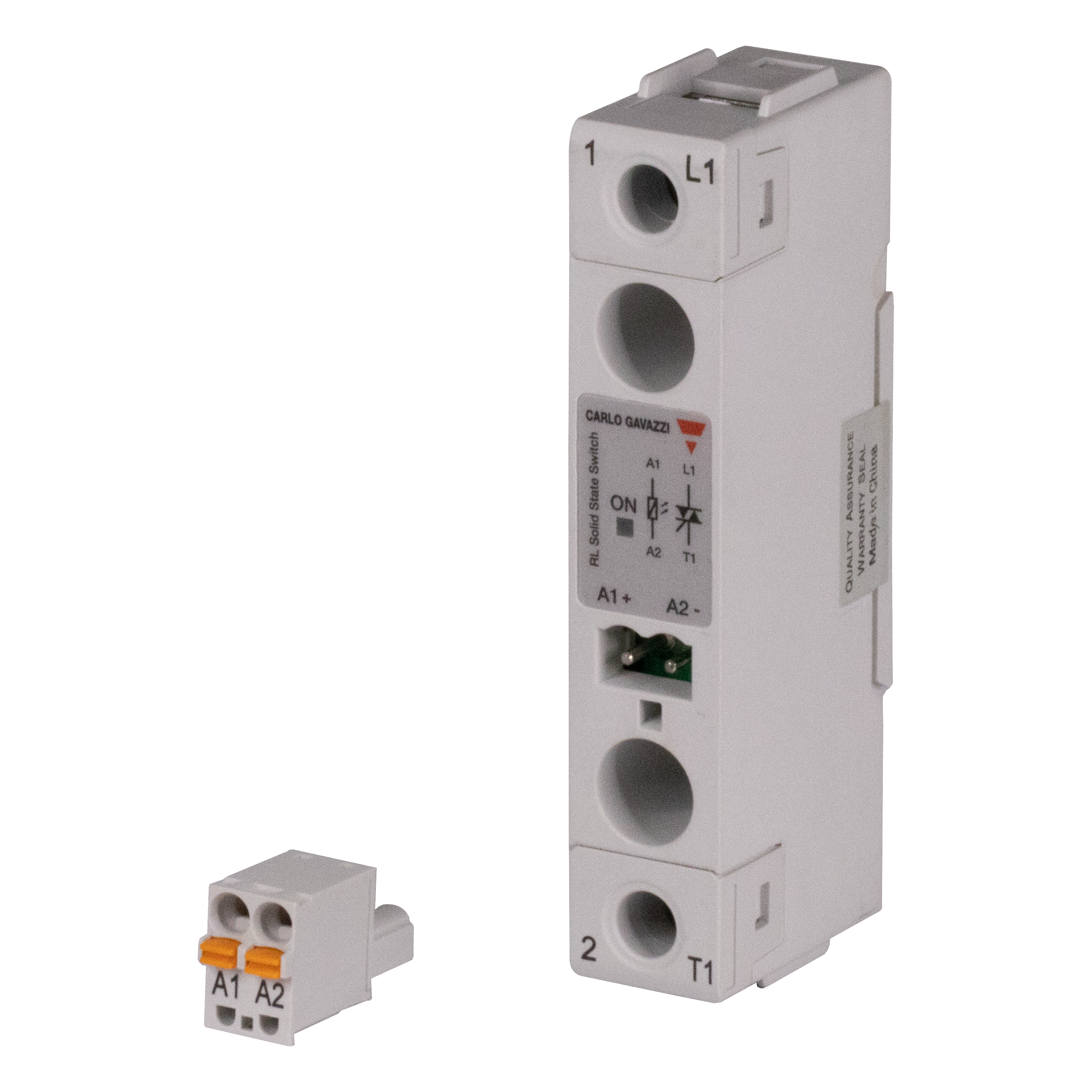

RLS1A48A50

1-pole panel mount SSR, , Zero-cross switching, for resistive loads, Operating voltage (Ue): 42 - 530 Vac (1200 Vp), Rated current (Ie): 50 Aac, Control voltage (Uc): 80 - 250 Vac, Built-in overvoltage protection, Plug-in control

Listpris

Tillgänglighet

Quantity

Har du frågor om den här produkten? Kontakta oss

Välj kylfläns

Specifikationer

Output switching mode

Zero cross

Number of phases

1

Rated operation current Ie at AC-51

50 A

Operating voltage

42 V ... 530 V

Rated control supply voltage Us at AC 50HZ

80 V ... 250 V

Power connection

Screw with captive clamp

Nedladdningar

Datablad

Manualer

Bilder

Ritningar

Broschyrer

Certifieringar
