Sensors
The Carlo Gavazzi Group

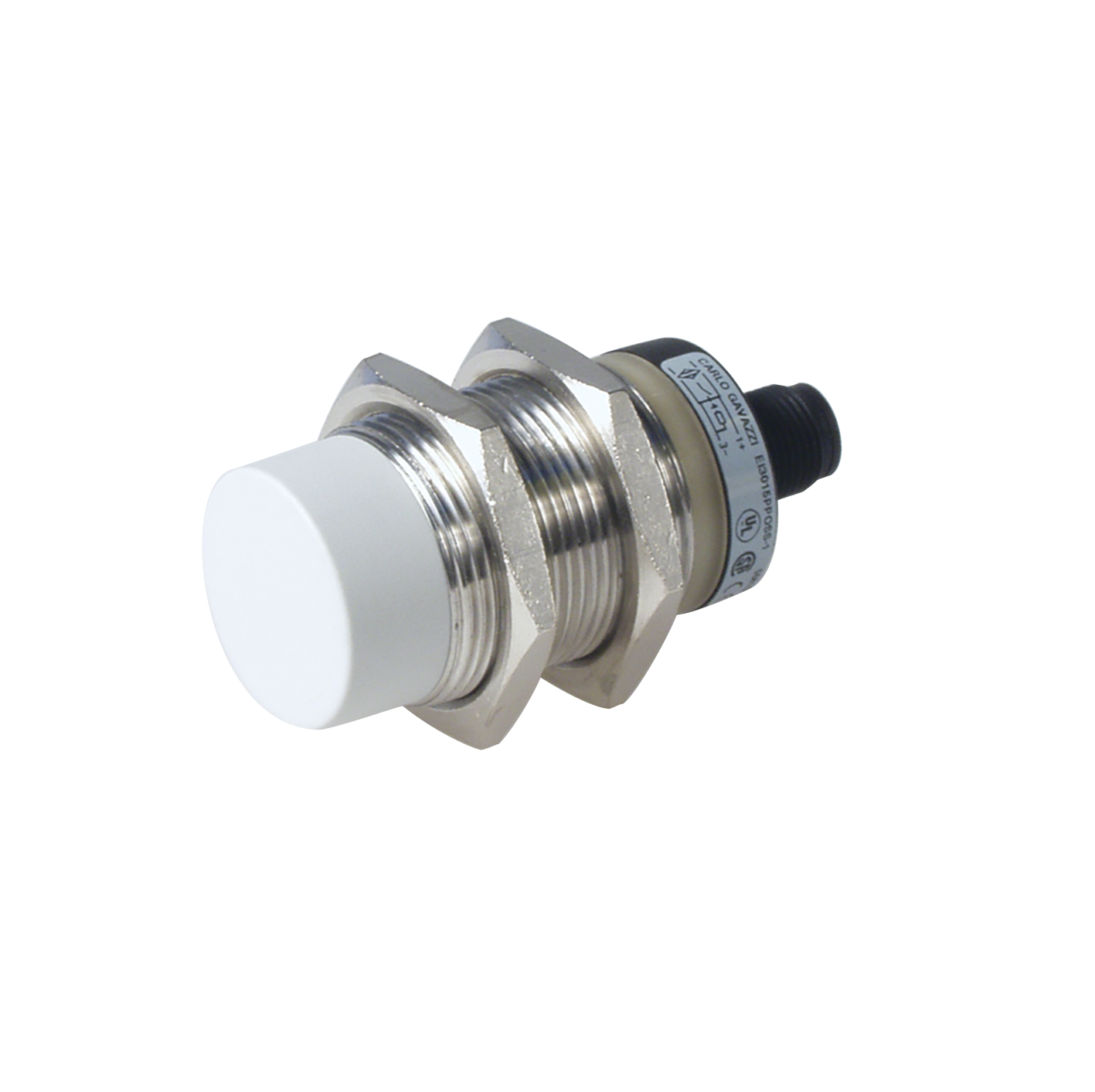

EI3015NPOSS-1
Inductive proximity sensor, M30 Stainless steel, M12 plug, Sn 15mm, Non- Flush mount, Short body, NPN NO, Supply voltage 10-40Vdc, Max output current 200 mA, Max switching frequency 100Hz, Operating temperature -25C - +70C, IP67.Spécifications
Switching distance
15 mm
Mechanical mounting condition for sensor
Concise
Diameter sensor
M30
Type of switching output
NPN
Type of switch function
Normally open contact
Type of electric connection
Plug-in connection
Construction type housing
Cylinder, screw-thread
Material housing
Metal
Supply voltage
10 V ... 40 V
Téléchargements
Fiche technique
Images
Brochures
Certifications
Accessoires connexes
AMB30-A
Mounting Bracket, Angled, for M30 Sensors, size 60 x 42 x 55 mm, Steel galvanized
AMB30-S
Mounting Bracket, Streight, for M30 Sensors, size 60 x 92 mm, Steel galvanized
CON14NFA2
Connection cable, Angled M12 plug, Female, 4-wires, PVC 2m cable, IP67, Temperature -25 - +80C
CON14NFA5
Connection cable, Angled M12 plug, Female, 4-wires, PVC 5m cable, IP67, Temperature -25 - +80C
