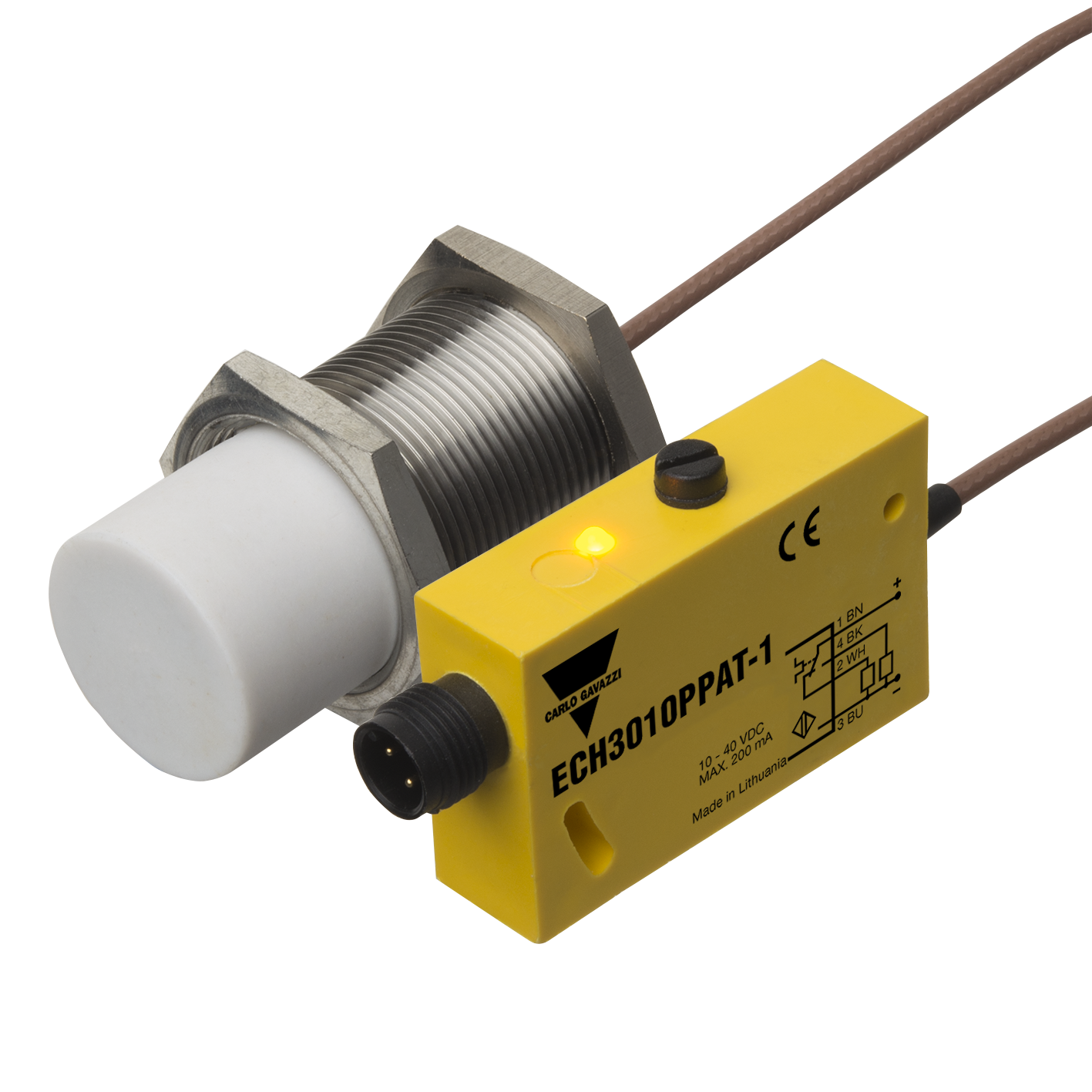

ECH3010PPAT-1
Capacitive Proximity Sensor, Non-flush mountable, Operating temperature -196C - +180C, Sensing Range 10mm, Adjustable 4-15mm, Power Supply 10-40VDC, PNP output, N.C.+N.O., M12 plug, Stainless Steel and Teflon Housing M30 x, IP67Spécifications
Mechanical mounting condition for sensor
Not flat
Type of switching output
PNP
Type of switch function
Anticoincidence
Type of electric connection
Connector M12
Construction type housing
Cylinder, screw-thread
Material housing
Metal
Supply voltage
10 V ... 40 V
Degree of protection (IP)
IP67
Téléchargements
Fiche technique
Manuels
Images
Dessins
Certifications
Générateur dynamique 3D
Accessoires connexes
AMB30-A
Mounting Bracket, Angled, for M30 Sensors, size 60 x 42 x 55 mm, Steel galvanized
AMB30-S
Mounting Bracket, Streight, for M30 Sensors, size 60 x 92 mm, Steel galvanized
CON14NFA2
Connection cable, Angled M12 plug, Female, 4-wires, PVC 2m cable, IP67, Temperature -25 - +80C
CON14NFA5
Connection cable, Angled M12 plug, Female, 4-wires, PVC 5m cable, IP67, Temperature -25 - +80C
