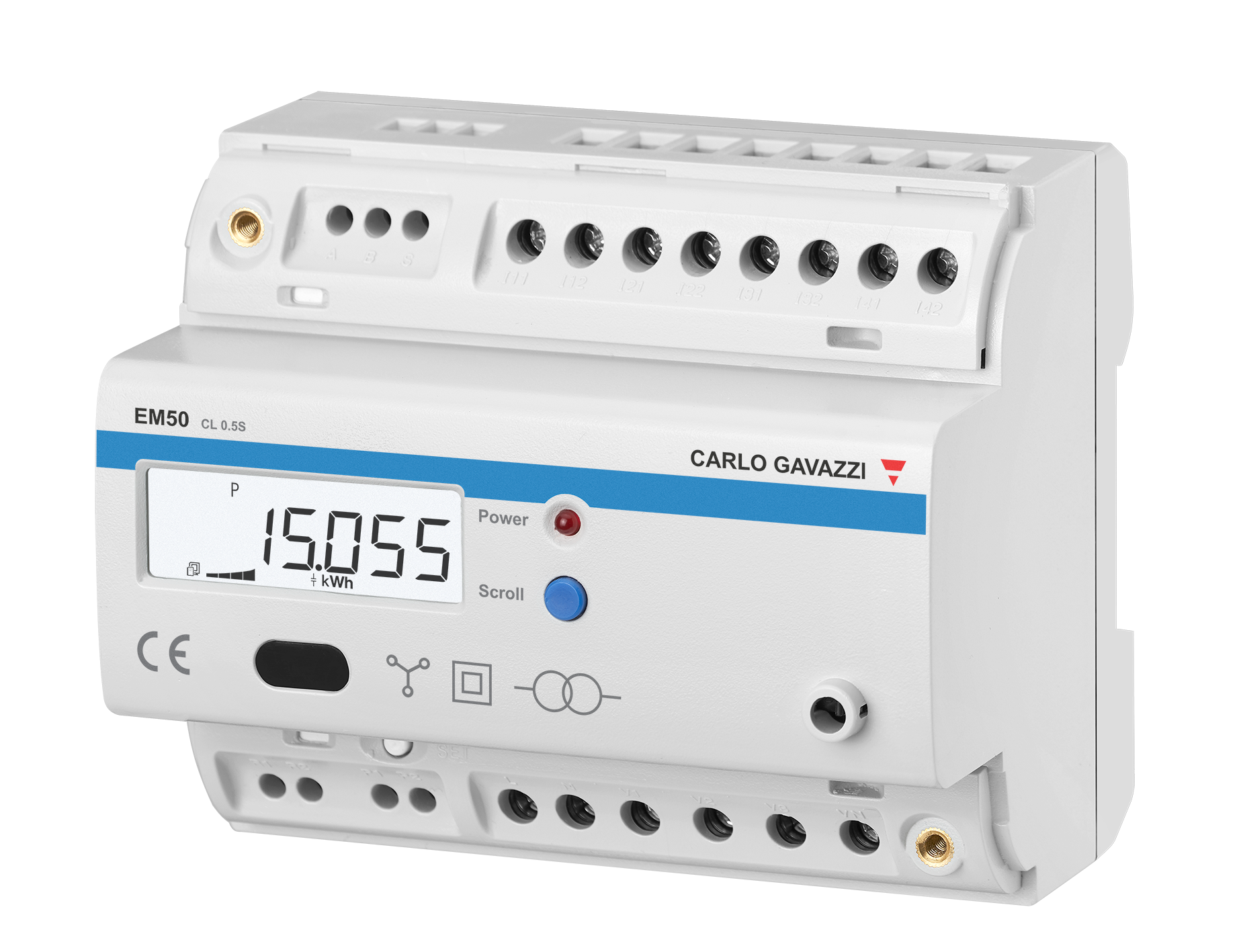

EM50DINMV53HRSX
Three-phase energy analyzer, 100-347 V L-N, 100-600 V L-L, current transformer 5(10) A , auxiliary power supply, with RS485 Modbus RTU, static output and Relays outputSpecifications
Voltage inputs
1-phase (2-wire), 240 V L-N; 3-phase (4-wire), 347/600 V; 3-phase (3-wire), 600 V L-L
Frequency
60Hz
Current inputs
333 mV current sensors
Static output
Pulse
Communication port and protocol
RS485 (Modbus RTU); BACnet MS/TP
Power supply
Auxiliary power supply 120 V ac
Approvals, marks, declarations
CE (Europe); cULus (North America)
