Energy meters and analysers

DIN-rail mount

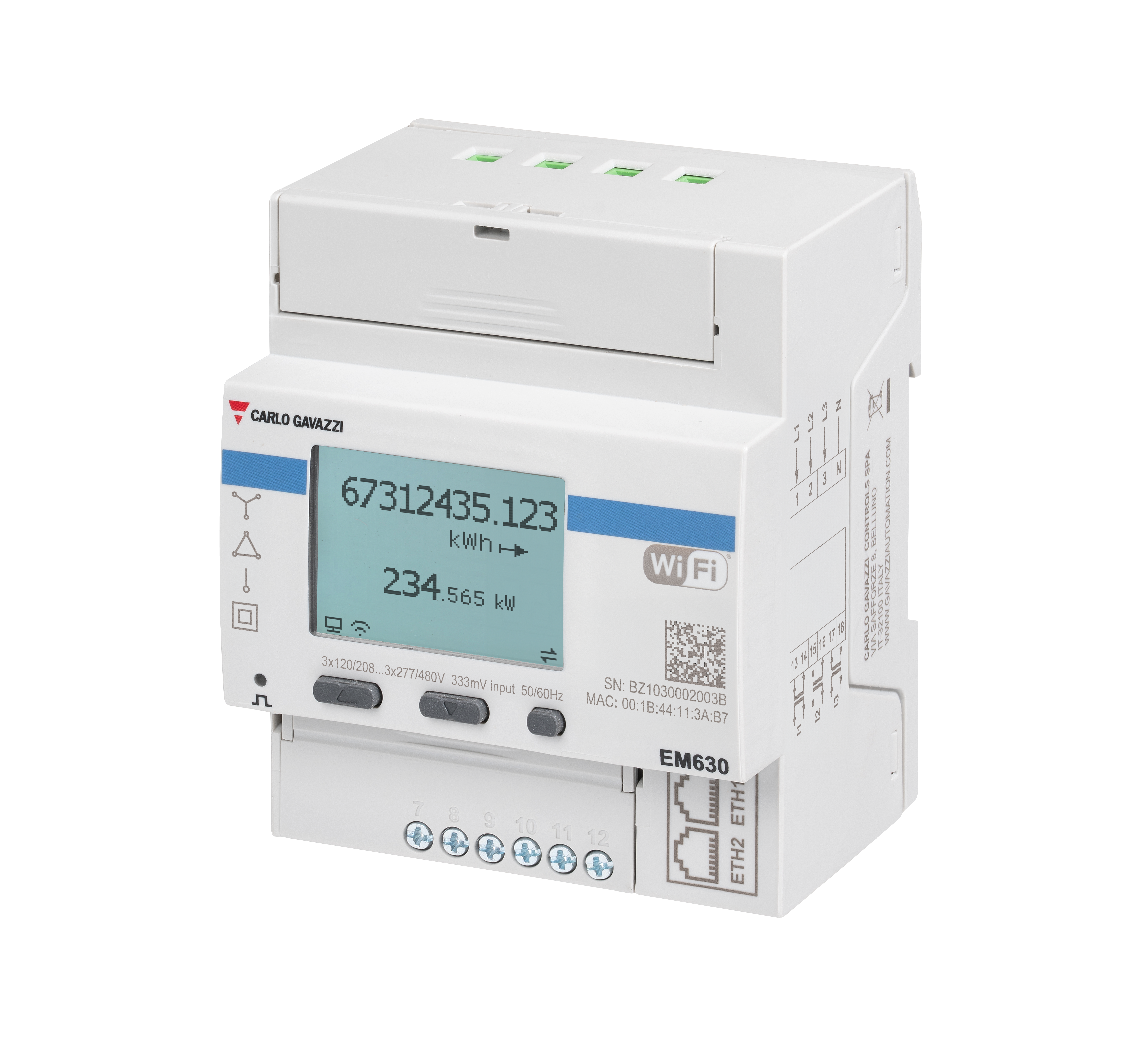

EM630WAV53XE2S1X

Three-phase Energy analyzer, 120 to 277 V L-N, 208 to 480 V L-L, 5(6) A CT connection, dual Ethernet port (Modbus TCP and HTTPS REST API), Wi-Fi LAN (Modbus TCP and HTTPS REST API), Wi-Fi 1-to-1 for configuration, RS485 Modbus RTUwebserver, bidirectional, CE, cULus

List Price

N/A

Availability

Quantity

Do you have questions about this product? Get in touch with us

Specifications

Voltage inputs

1-phase (2-wire), 120 V L-N;
1-phase (2-wire), 220 V L-N;
1-phase (2-wire), 230 V L-N;
1-phase (2-wire), 240 V L-N;
2-phase (3-wire), 120/240 V;
2-phase (3-wire), 220/440 V;
2-phase (3-wire), 240/480 V;
3-phase (4-wire), 120/208 V;
3-phase (4-wire), 127/220 V;
3-phase (4-wire), 220/380 V;
3-phase (4-wire), 230/400 V;
3-phase ( 4-wire), 240/415 V;
3-phase (4-wire), 277/480 V;
3-phase (3-wire), 240 V L-L;
3-phase (3-wire), 380 V L-L;
3-phase (3-wire), 400 V L-L;
3-phase (3-wire), 415 V L-L;
3-phase (3-wire), 480 V L-L;
3-phase (4-wire delta), 120(208) / 240 V;
3-phase (4-wire delta), 240(415) / 480 V

Frequency

50Hz;
60Hz

Current inputs

5 A current transformers

Energy metering

Consumption and generation

Communication port and protocol

M-Bus;
Ethernet (Modbus TCP/IP);
Ethernet (HTTPS REST API);
Ethernet (HTTPS webserver);
Wi-Fi LAN (Modbus TCP/IP);
Wi-Fi LAN (HTTPS REST API);
Wi-Fi LAN (HTTPS webserver);
Wi-Fi 1-to-1 (Soft AP)

Power supply

Self power supply

Approvals, marks, declarations

CE (Europe);
cULus (North America)
